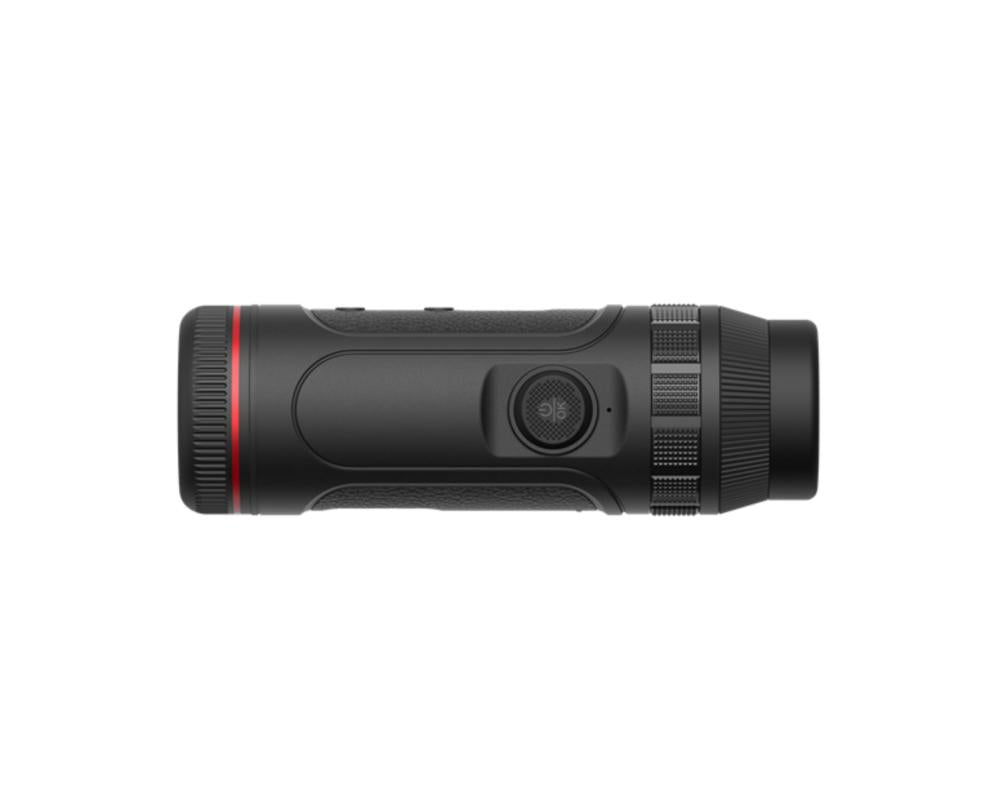

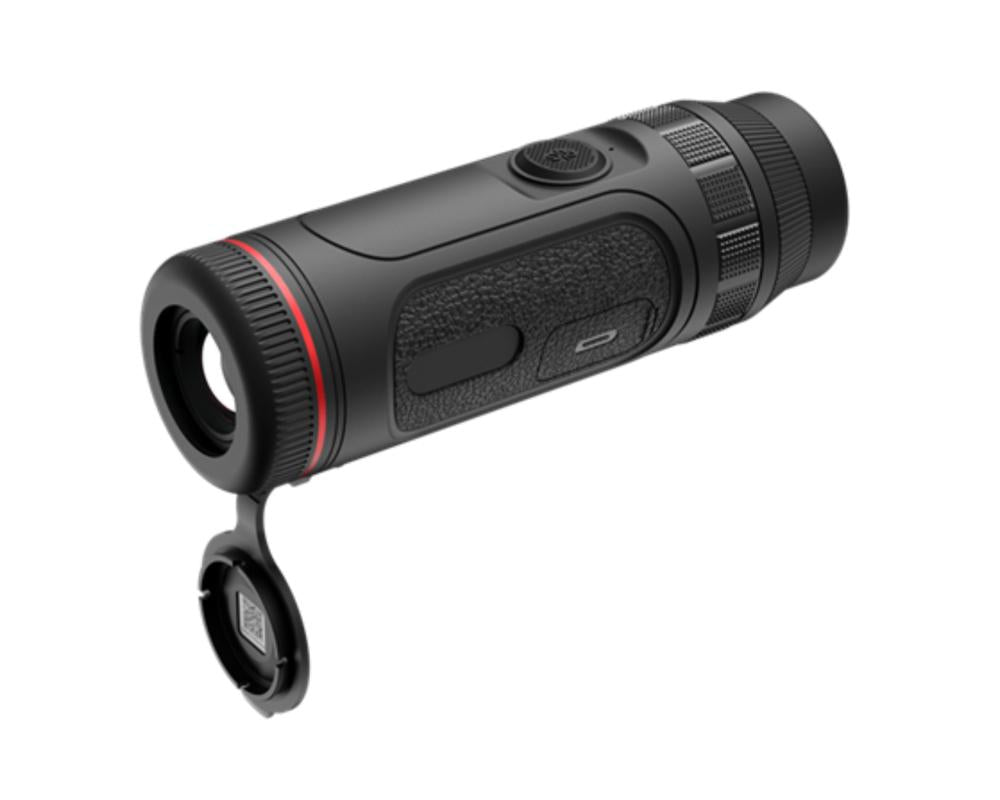

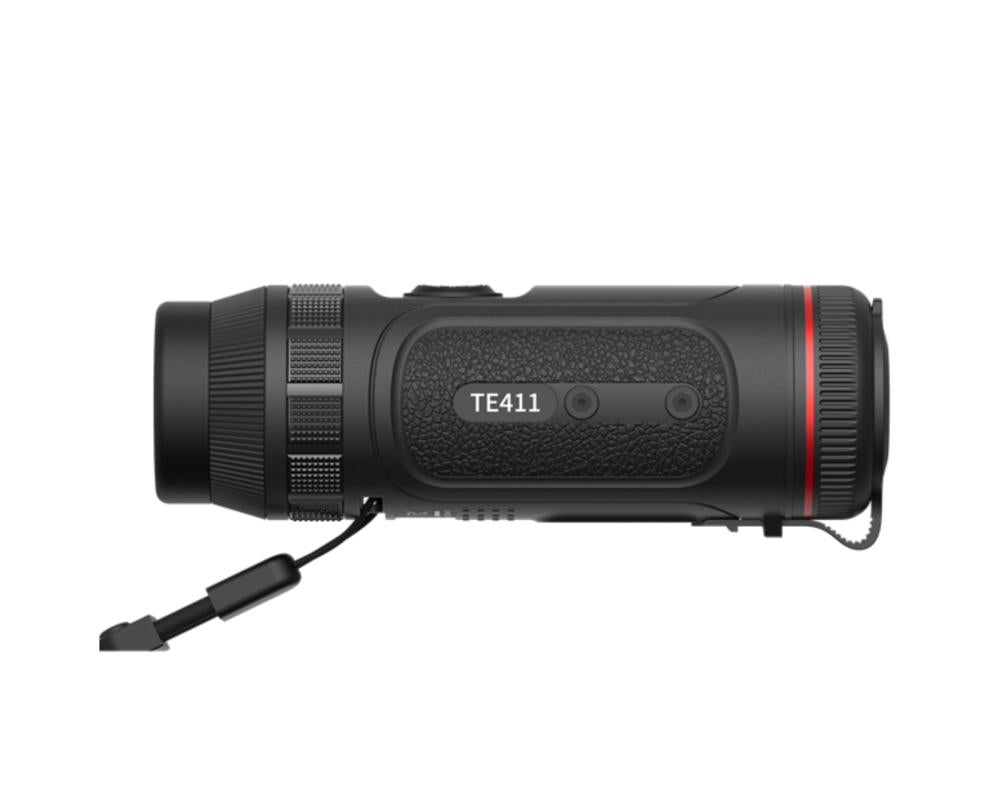

Guide TE411 19mm Handheld Mini Thermal Imaging Monocular | 400x300 Resolution

The TE Series Handheld Thermal Imaging Monocular is a pocket-sized night vision powerhouse, offering exceptional performance at an affordable price. It is equipped with a highly sensitive infrared detector, providing multiple resolutions and lens options to meet your diverse needs in various environments. A 10-minute quick charge gives you an hour of continuous use, making it the perfect companion for your outdoor explorations.

Features for Guide TE411 19mm 400x300 Handheld Mini Thermal Monocular:

• Powerful 12μm detector Sharp image quality: To achieve a crisp image clarity, the TE Series is equipped with a powerful 12μm detector and offers multiple resolutions and lenses to meet your needs in various scenarios and activities.
• Ultra-lightweight Effortlessly portable: The TE Series only weighs over 200 grams with a compact, pocket-sized design, small like a mobile phone and thinner than a wristwatch, offering a comfortable grip and exceptional portability.
• Smooth operation One-button, one-ring: Based on years of outdoor experience, the TE Series has streamlined the button design to simplify operations. With a one-button and one-ring design, you can easily access the menu and perform various functions, allowing for seamless control.
• Extended battery 20W quick charge: The TE Series integrates a built-in rechargeable battery that provides up to 6 hours of runtime. It features an advanced 20W quick charge function. With just 10-minute quick charging, you can enjoy 1 hour of continuous use, ensuring worry-free power.
• Comfortable viewing Clear and smooth visuals: The 0.32-inch AMOLED screen presents rich colors and clear, smooth images, offering top-notch visual effects. The comfortable eyepiece and 25mm eye relief reduce eye fatigue, providing a great visual experience for your outdoor observation activities.
• Audio-visual sync: Photos, videos, and audio recordings are all available. With 16GB built-in storage, you can flexibly capture and share exciting moments in the wild anytime and anywhere.
• Dual-band WiFi connection: The WiFi function has been upgraded to dual-band, providing stronger connectivity. The TE Series features faster transmission speeds and longer distances, with upgrade packages downloading in just 10 seconds and a maximum transmission distance of 26.5 meters.

Specifications for Guide TE411 19mm 400x300 Handheld Mini Thermal Monocular:

Sensor

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 400×300@12μm
• NETD: 25mK
• Frame rate: 50Hz

Lens

• Objective lens: 19mm, F1.0
• Field of view: 14.4°×10.8°
• FOV m@100m: 25×19
• Magnification: 1.4x~5.6x
• Detection range: 1000m/1090yd
• Focus: Manual

Display

• Display type: 0.32'' AMOLED 800×600
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 25mm; Diopter: -5 to +5; Zoom: 14x

Hardware

• WIFI: 2.4G, 5G
• Interface: USB Type-C, Support charging
• Others: Microphone, Bluetooth

System

• Recording function: Photo/Video (Audio recording included)
• Memory capacity: 16GB

Power

• Battery type: Built-in battery
• Operating time: 5 hours (Support 20W quick charging)

Environmental

• Operating temp: -20°C to 50°C / -4°F to +122°F
• Encapsulation: IP67

Physical

• Weight (g/oz): 308/10.86
• Size (mm/in): 47×47×148/1.85×1.85×5.83
• Standard: Device, Lens cover, Eye mask, Wrist strap, Quick charging adapter, USB Type-C cable, Quick use guide, Safety Information Manual, Warranty card
• Optional: Bluetooth remote control
